Engineering desert sand into self‑standing electrodes via endogenous Fe‑catalyzed in‑situ growth of N‑doped carbon nanotubes for high‑performance supercapacitors

Engineering desert sand into self‑standing electrodes via endogenous Fe‑catalyzed in‑situ growth of N‑doped carbon nanotubes for high‑performance supercapacitors

研究概述

利用沙漠砂内源Fe催化原位生长氮掺杂碳纳米管,将无粘结剂固化砂体转化为自支撑Fe3C@NCNTs电极。电极在2 mA/cm²下面积电容2825.5 mF/cm²;对称超级电容器循环50000次后保持97.7%电容,展示天然含过渡金属矿物制备整体碳电极的潜力。

谱图与表征信息

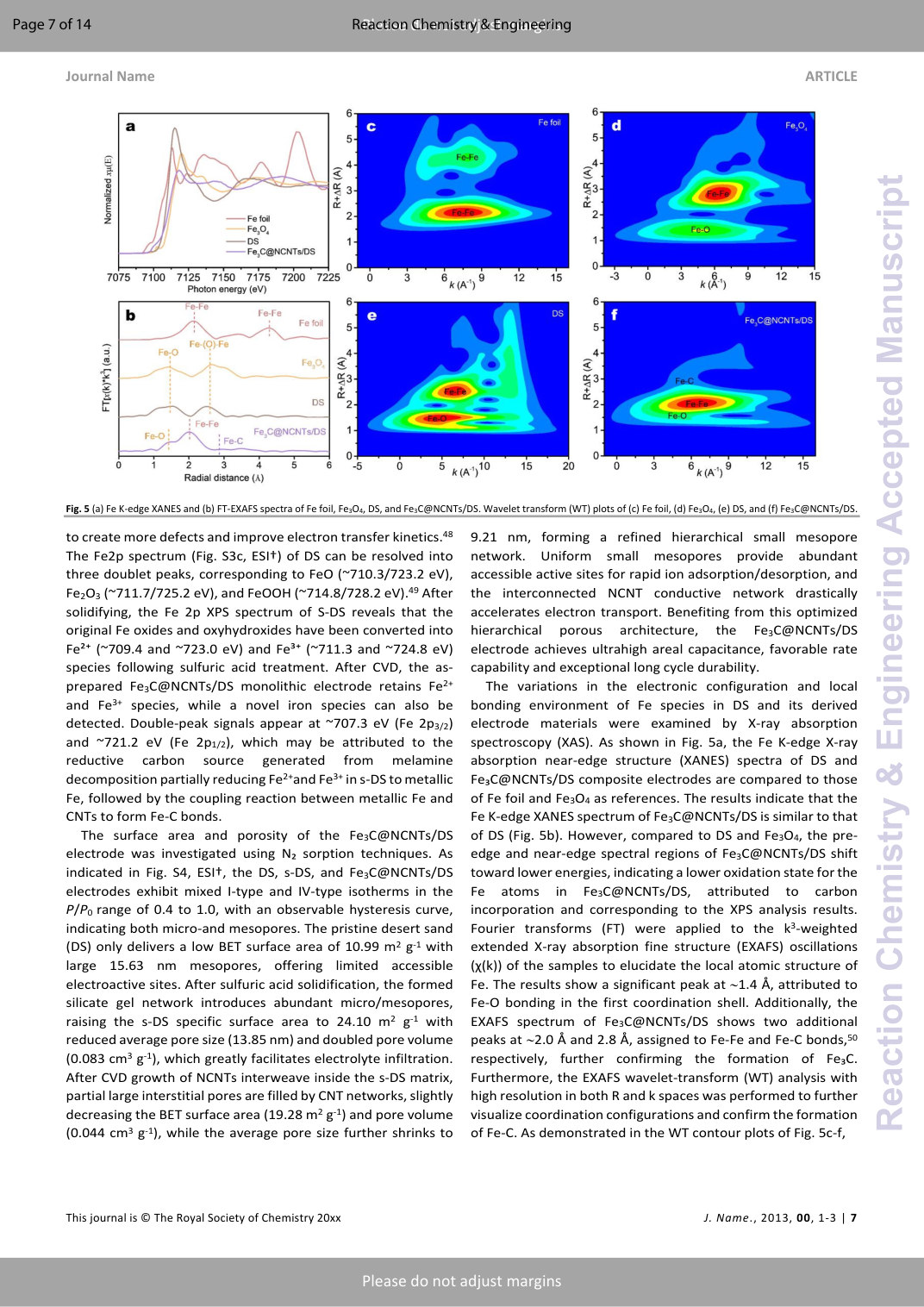

图5 · 原文PDF第8页
Fig. 5 (a) Fe K-edge XANES and (b) FT-EXAFS spectra of Fe foil, Fe3O4, DS, and Fe3C@NCNTs/DS. Wavelet transform (WT) plots of (c) Fe foil, (d) Fe3O4, (e) DS, and (f) Fe3C@NCNTs/DS.
