Flash Synthesis of Graphite-Encapsulated NiMn Heterostructures for Efficient Hydrogen Production and Biofuel Valorization
Read the original paper · 10.1021/acscatal.5c03912 ↗
Source figures may contain other techniques and soft X-ray spectra. C, N and O measurements are outside our current hard-XAFS testing range.

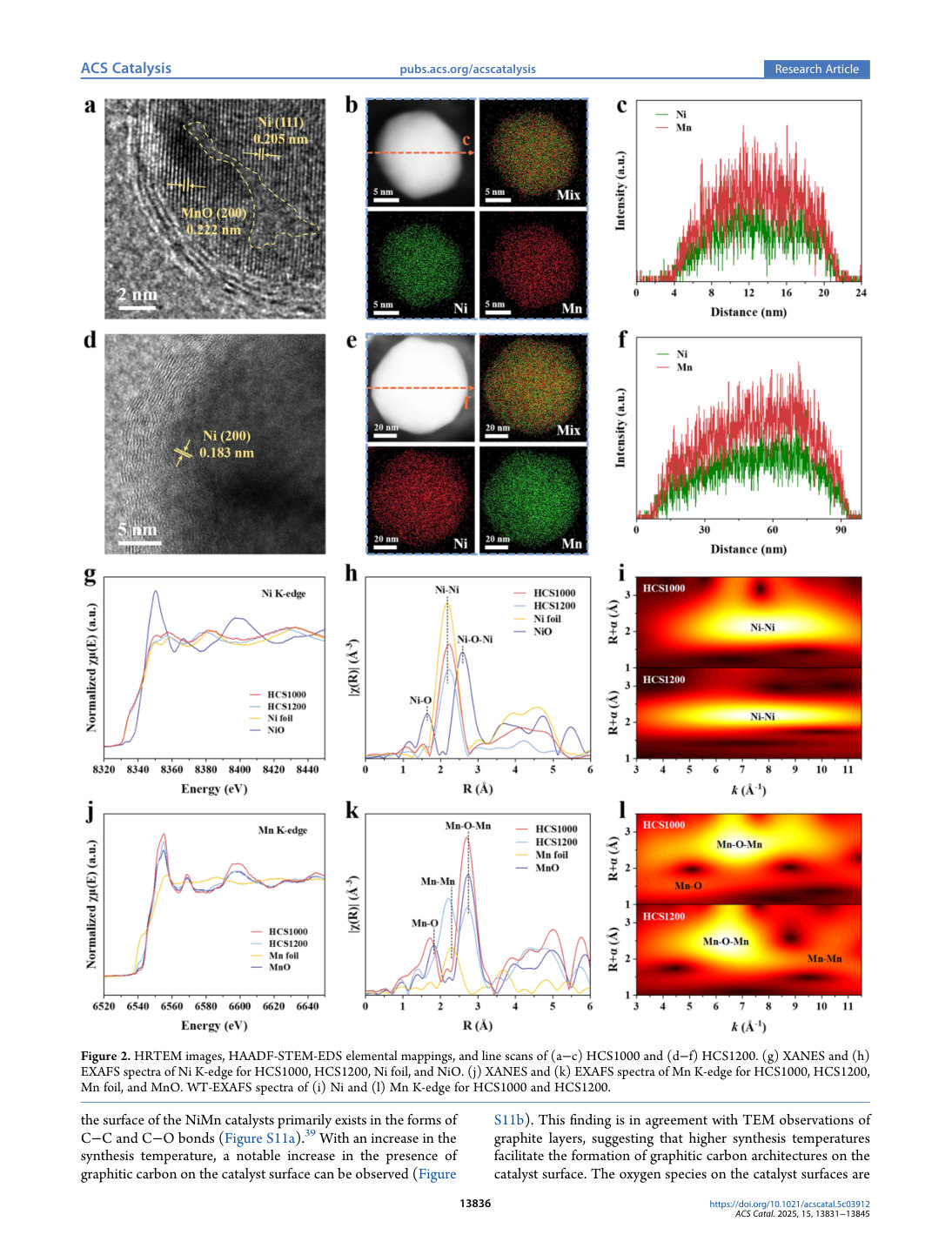

Figure 2. HRTEM images, HAADF-STEM-EDS elemental mappings, and line scans of (a−c) HCS1000 and (d−f) HCS1200. (g) XANES and (h) EXAFS spectra of Ni K-edge for HCS1000, HCS1200, Ni foil, and NiO. (j) XANES and (k) EXAFS spectra of Mn K-edge for HCS1000, HCS1200, Mn foil, and MnO. WT-EXAFS spectra of (i) Ni and (l) Mn K-edge for HCS1000 and HCS1200.
