Fully exploited imidazolium bromide for simultaneous resolution of cathode and anode challenges in zinc–bromine batteries
Read the original paper · 10.1039/d4ee02096k ↗
Source figures may contain other techniques and soft X-ray spectra. C, N and O measurements are outside our current hard-XAFS testing range.

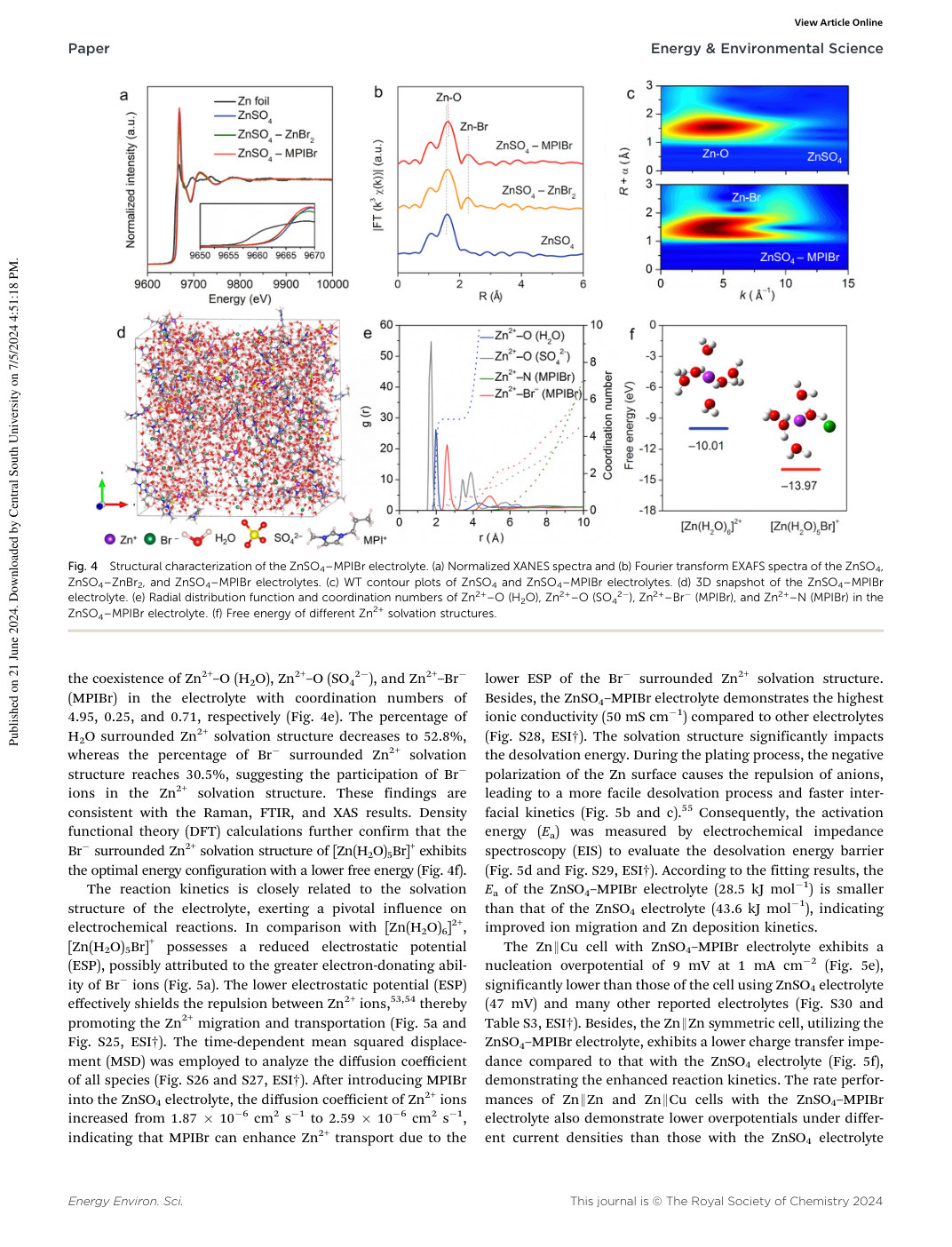

Fig. 4 Structural characterization of the ZnSO4–MPIBr electrolyte. (a) Normalized XANES spectra and (b) Fourier transform EXAFS spectra of the ZnSO4, ZnSO4–ZnBr2, and ZnSO4–MPIBr electrolytes. (c) WT contour plots of ZnSO4 and ZnSO4–MPIBr electrolytes. (d) 3D snapshot of the ZnSO4–MPIBr electrolyte. (e) Radial distribution function and coordination numbers of Zn2+–O (H2O), Zn2+–O (SO4
