XAFS in situ cell

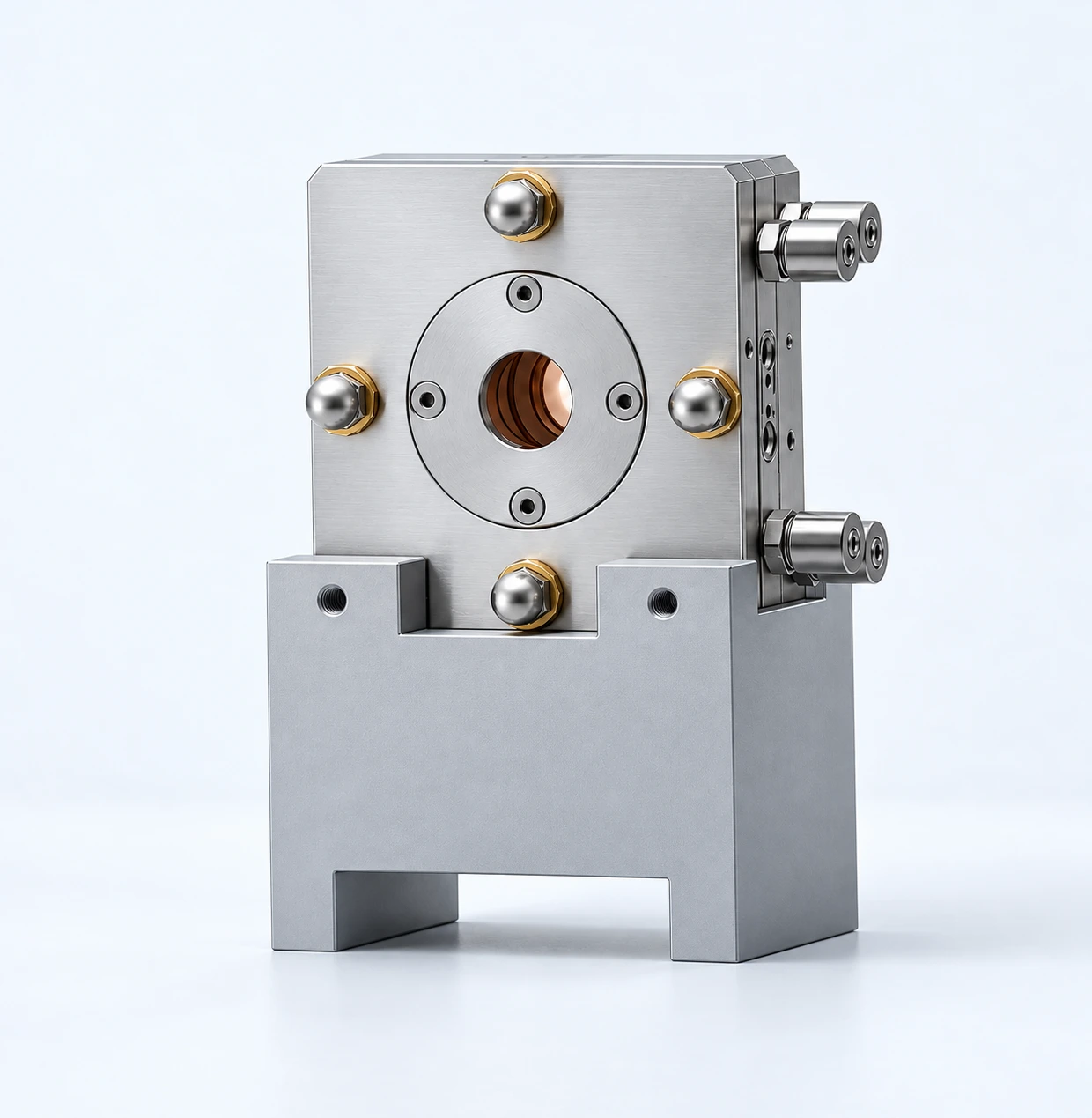

High / low-temperature cell (−60 to 100°C)
Liquid-nitrogen cooling and ceramic heating for XAFS configurations.
- Operating temperature
- −60 to 100°C
- Technique
- XAFS / synchrotron
TECHNICAL SPECIFICATIONS
Specifications and configuration
- Operating temperature
- −60 to 100°C
- Technique
- XAFS / synchrotron
- Temperature control
- Liquid-nitrogen cooling + ceramic heating
- Body material
- 316L stainless steel
- Window material
- Be windows on both sides
- Seal
- Vacuum seal with oxygen-free copper gasket
Materials, windows, temperature control and interfaces are selected for the experiment. Confirm instrument compatibility and the final technical agreement.
LABORATORY PLANNING
Prepare your laboratory
- Compatibility
- Confirm beam geometry, cell mounting, window material, sample thickness and instrument clearance.
- Utilities
- Match gas, liquid, electrical and heating / cooling connections to the experiment.
- Installation review
- Confirm sealing, material compatibility and operating limits with the technical team.
Cell requirements depend on the selected materials, interfaces and host instrument.
RESOURCES & SUPPORT
Explore High / low-temperature cell (−60 to 100°C)
Match the system to your sample, measurement target and laboratory.
