XAFS in situ cell

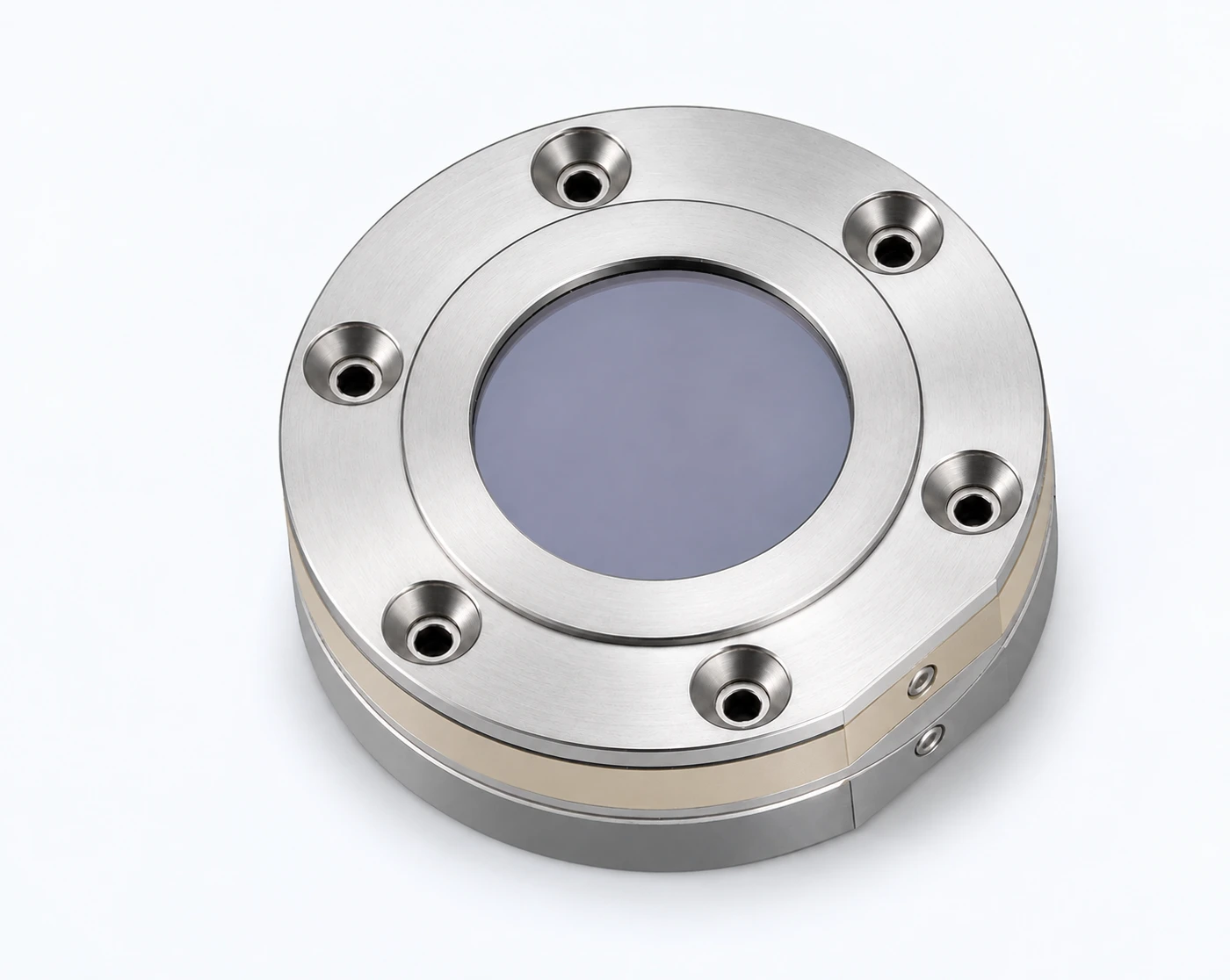

Circular reflection-mode battery cell
Circular chamber with a reflection beam path for battery experiments.
- Structure
- Circular chamber / reflection
- Application
- In situ battery XRD
TECHNICAL SPECIFICATIONS
Specifications and configuration
- Structure
- Circular chamber / reflection
- Application
- In situ battery XRD
- Body material
- 316L stainless steel
- Window material
- Be window (reflection)
- Electrode setup
- Two / three electrodes
- Seal
- O-ring + compression nut
Materials, windows, temperature control and interfaces are selected for the experiment. Confirm instrument compatibility and the final technical agreement.
LABORATORY PLANNING
Prepare your laboratory
- Compatibility
- Confirm beam geometry, cell mounting, window material, sample thickness and instrument clearance.
- Utilities
- Match gas, liquid, electrical and heating / cooling connections to the experiment.
- Installation review
- Confirm sealing, material compatibility and operating limits with the technical team.
Cell requirements depend on the selected materials, interfaces and host instrument.
RESOURCES & SUPPORT
Explore Circular reflection-mode battery cell
Match the system to your sample, measurement target and laboratory.
