XAFS in situ cell

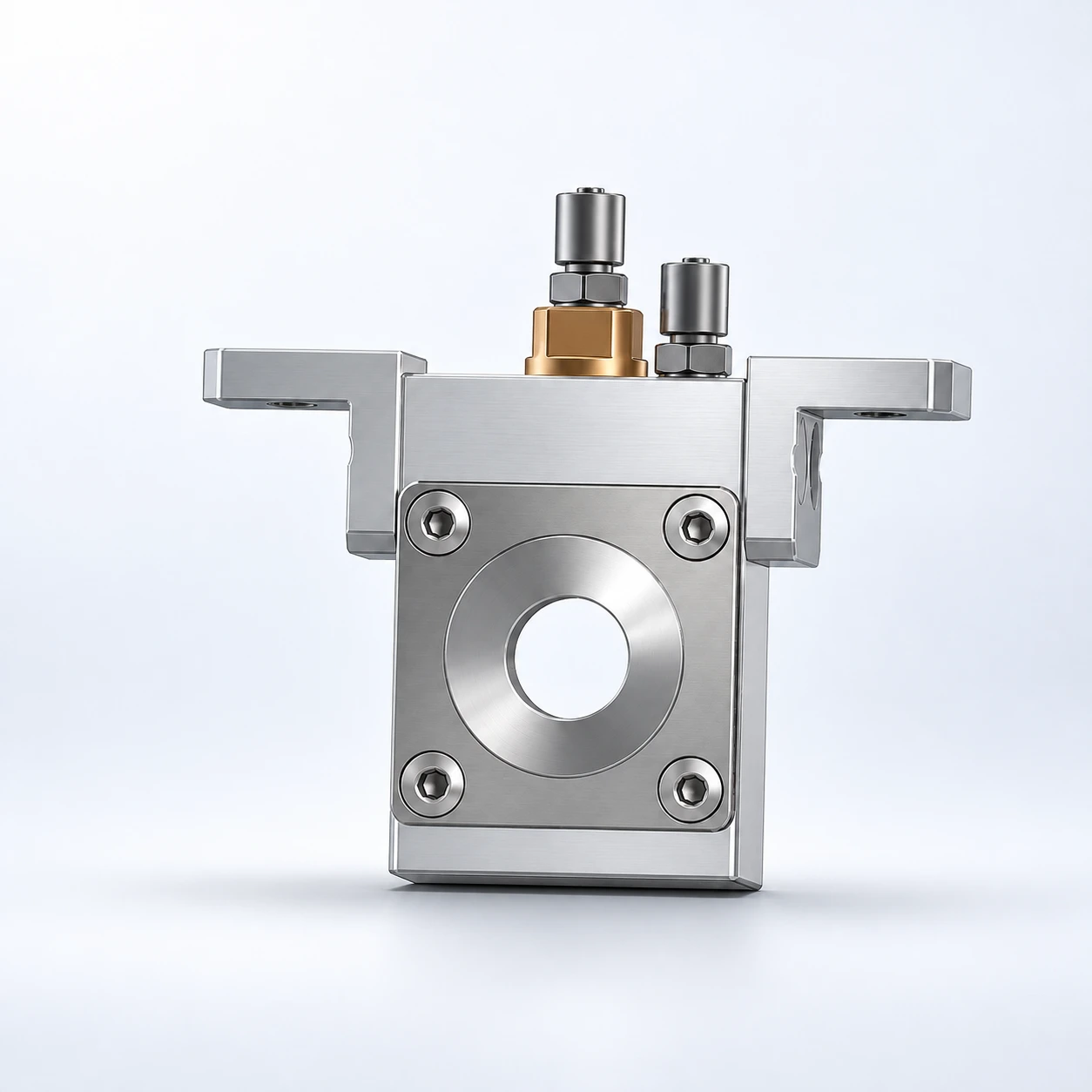

Thermal catalysis cell
In situ thermal catalysis from room temperature to 100°C.
- Application
- Thermal catalysis
- Operating temperature
- RT-100°C
TECHNICAL SPECIFICATIONS
Specifications and configuration
- Application
- Thermal catalysis
- Operating temperature
- RT-100°C
- Heating
- Ceramic heater
- Body material
- 316L stainless steel
- Window material
- Kapton film / Be window
- Seal
- FKM
Materials, windows, temperature control and interfaces are selected for the experiment. Confirm instrument compatibility and the final technical agreement.
LABORATORY PLANNING
Prepare your laboratory
- Compatibility
- Confirm beam geometry, cell mounting, window material, sample thickness and instrument clearance.
- Utilities
- Match gas, liquid, electrical and heating / cooling connections to the experiment.
- Installation review
- Confirm sealing, material compatibility and operating limits with the technical team.
Cell requirements depend on the selected materials, interfaces and host instrument.
RESOURCES & SUPPORT
Explore Thermal catalysis cell
Match the system to your sample, measurement target and laboratory.
