XAFS in situ cell

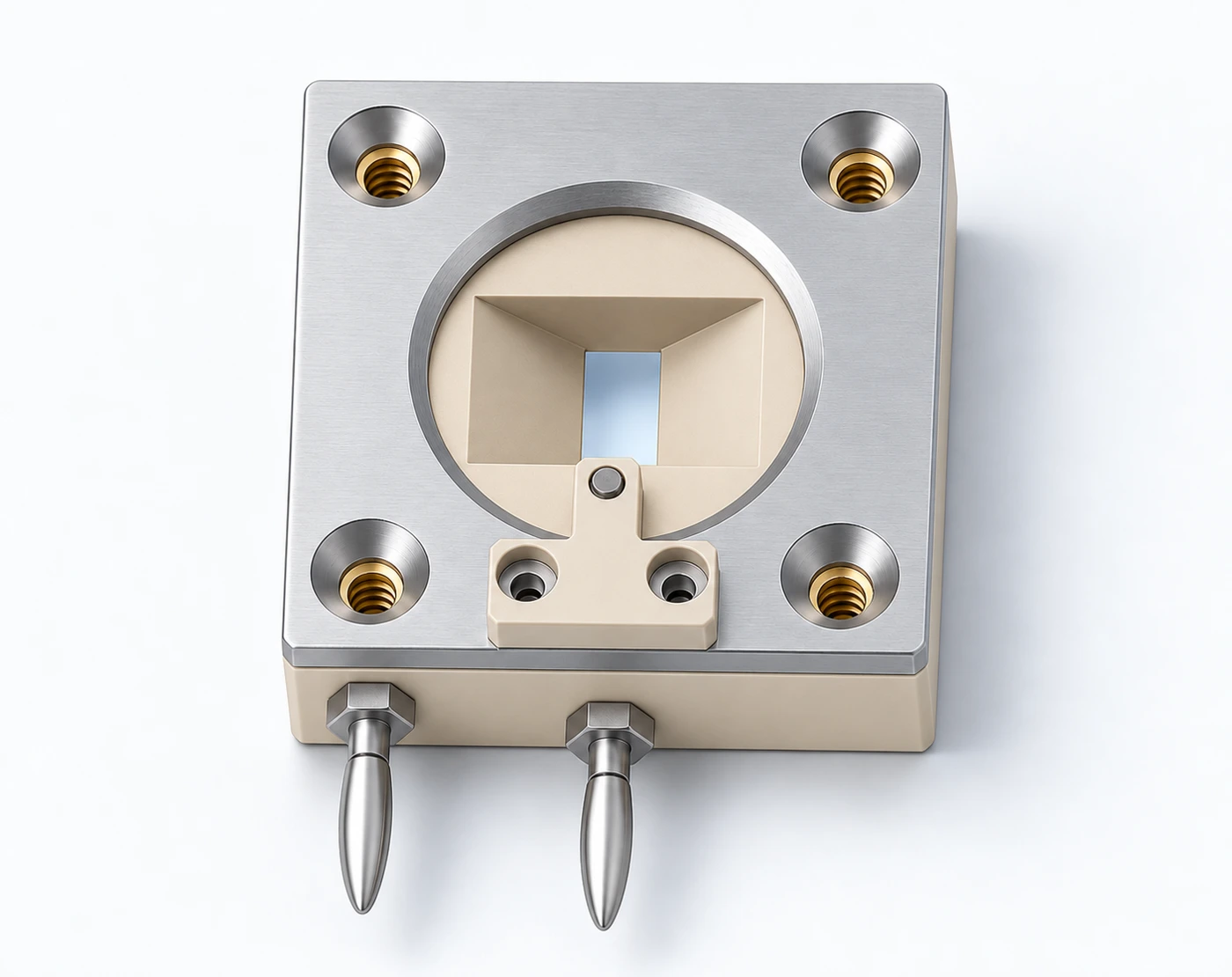

Battery cell
A general-purpose cell for in situ battery experiments.
- Application
- General in situ battery measurements
- Electrode setup
- Two / three electrodes
TECHNICAL SPECIFICATIONS
Specifications and configuration
- Application
- General in situ battery measurements
- Electrode setup
- Two / three electrodes
- Body material
- PEEK
- Window material
- Be window
- Pressure
- Atmospheric pressure
- Seal
- O-ring + compression
Materials, windows, temperature control and interfaces are selected for the experiment. Confirm instrument compatibility and the final technical agreement.
LABORATORY PLANNING
Prepare your laboratory
- Compatibility
- Confirm beam geometry, cell mounting, window material, sample thickness and instrument clearance.
- Utilities
- Match gas, liquid, electrical and heating / cooling connections to the experiment.
- Installation review
- Confirm sealing, material compatibility and operating limits with the technical team.
Cell requirements depend on the selected materials, interfaces and host instrument.
RESOURCES & SUPPORT
Explore Battery cell
Match the system to your sample, measurement target and laboratory.
