XAFS in situ cell

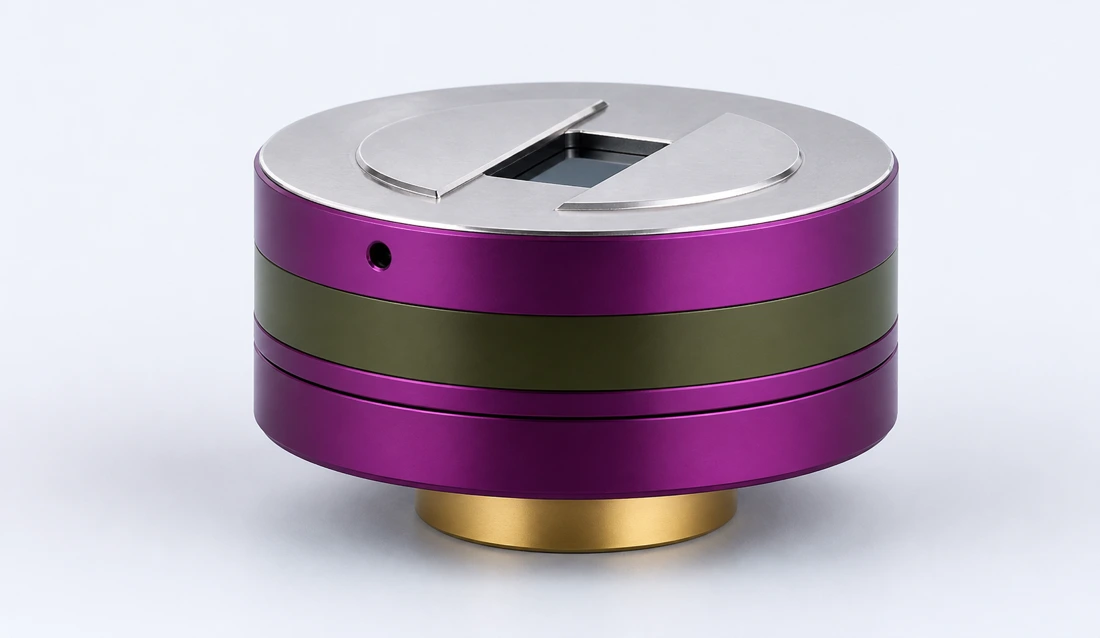

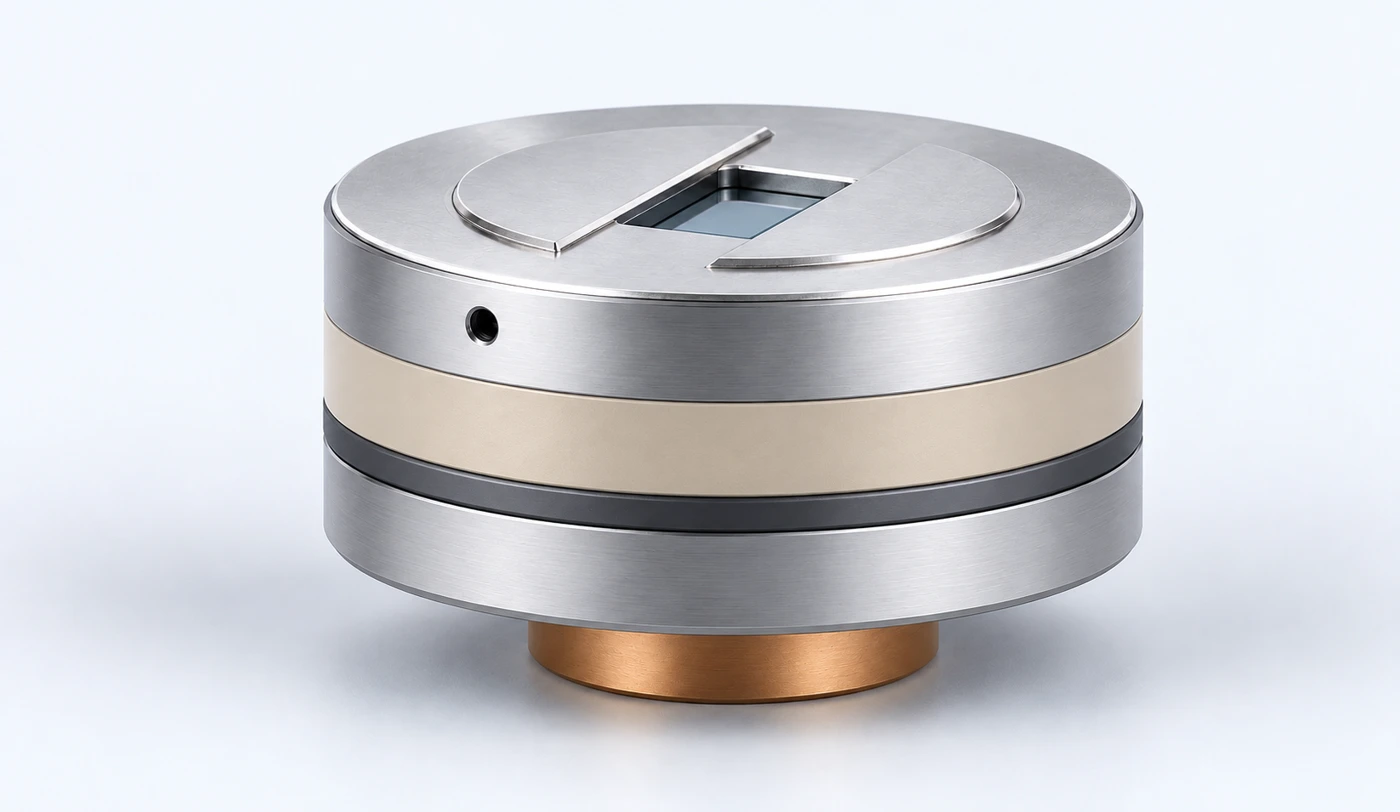

High-pressure battery die cell
In situ battery characterization under applied pressure.
- Structure
- High-pressure die / synchrotron geometry
- Application
- In situ battery measurements under pressure
TECHNICAL SPECIFICATIONS
Specifications and configuration
- Structure
- High-pressure die / synchrotron geometry
- Application
- In situ battery measurements under pressure
- Pressure
- ≤ 10 MPa
- Die material
- Stainless steel
- Window material
- Be window
Materials, windows, temperature control and interfaces are selected for the experiment. Confirm instrument compatibility and the final technical agreement.
LABORATORY PLANNING
Prepare your laboratory
- Compatibility
- Confirm beam geometry, cell mounting, window material, sample thickness and instrument clearance.
- Utilities
- Match gas, liquid, electrical and heating / cooling connections to the experiment.
- Installation review
- Confirm sealing, material compatibility and operating limits with the technical team.
Cell requirements depend on the selected materials, interfaces and host instrument.
RESOURCES & SUPPORT
Explore High-pressure battery die cell
Match the system to your sample, measurement target and laboratory.
