XAFS in situ cell

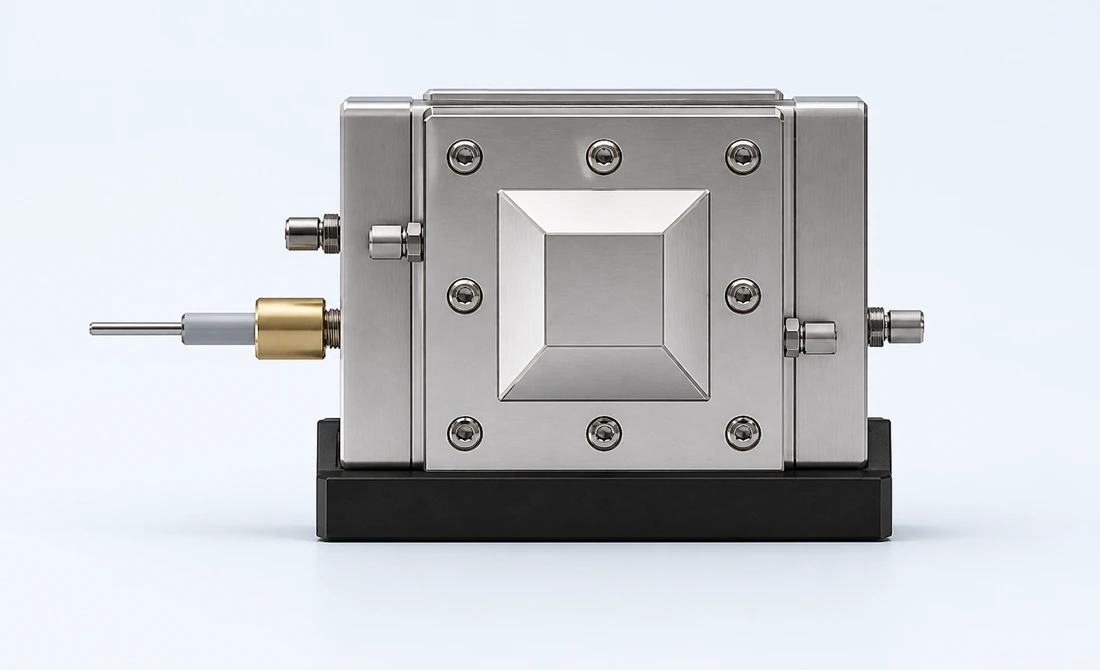

Electrocatalytic flow cell
Separated gas / liquid supply with a serpentine electrochemical flow channel.
- Application
- In situ electrocatalysis with separated gas / liquid flow
- Liquid channel
- Serpentine channel
TECHNICAL SPECIFICATIONS
Specifications and configuration
- Application
- In situ electrocatalysis with separated gas / liquid flow
- Liquid channel
- Serpentine channel
- Body material
- PTFE / PEEK
- Window material
- PEEK
- Electrode setup
- Three electrodes
- Seal
- Silicone gasket
Materials, windows, temperature control and interfaces are selected for the experiment. Confirm instrument compatibility and the final technical agreement.
LABORATORY PLANNING
Prepare your laboratory
- Compatibility
- Confirm beam geometry, cell mounting, window material, sample thickness and instrument clearance.
- Utilities
- Match gas, liquid, electrical and heating / cooling connections to the experiment.
- Installation review
- Confirm sealing, material compatibility and operating limits with the technical team.
Cell requirements depend on the selected materials, interfaces and host instrument.
