XAFS in situ cell

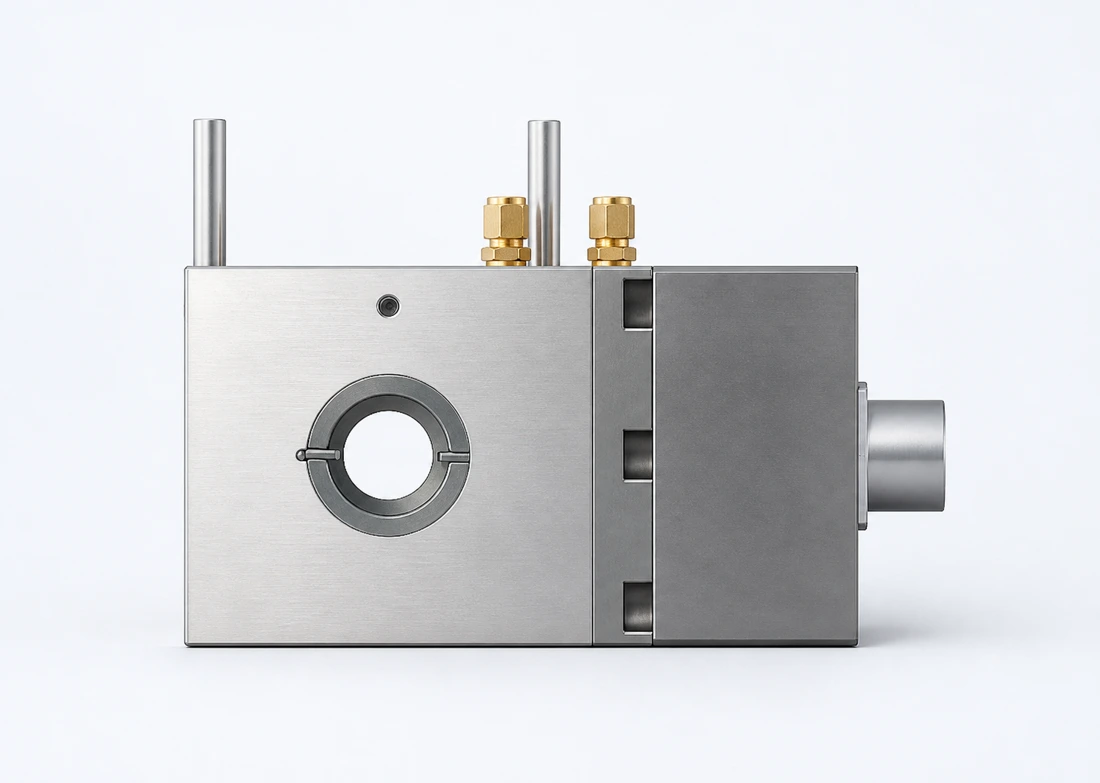

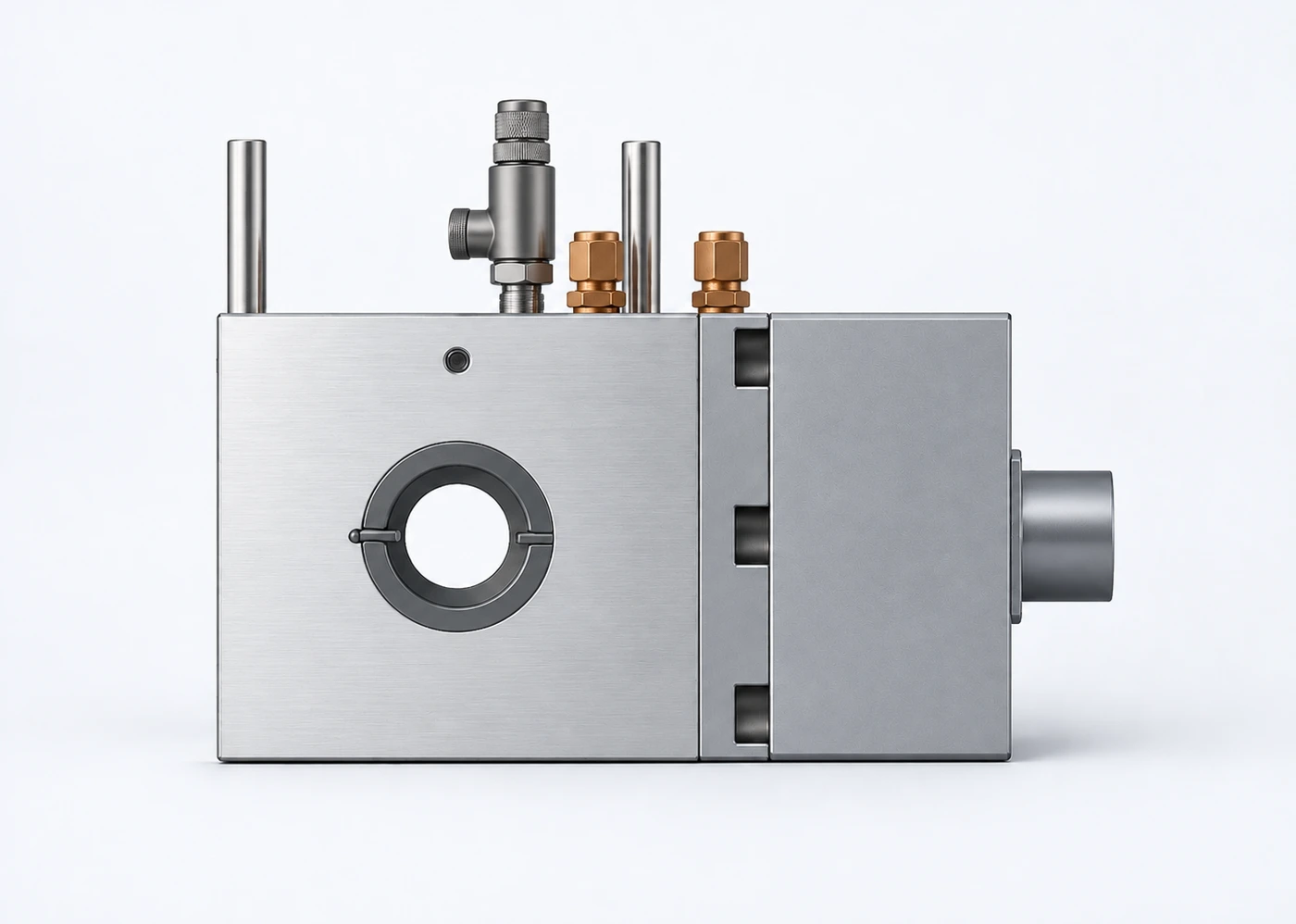

High-temperature / high-pressure cell
Temperature-programmed gas–solid experiments up to 850°C and a maximum pressure of 3 MPa.
- Application
- Temperature-programmed gas–solid experiments
- Temperature / pressure
- Up to 850°C; maximum pressure 3 MPa
TECHNICAL SPECIFICATIONS
Specifications and configuration
- Application
- Temperature-programmed gas–solid experiments
- Temperature / pressure
- Up to 850°C; maximum pressure 3 MPa
- Heating
- Heater rod
- Body material
- 316L stainless steel / Hastelloy
- Window material
- Kapton film / Be window
- Seal
- FKM
Materials, windows, temperature control and interfaces are selected for the experiment. Confirm instrument compatibility and the final technical agreement.
LABORATORY PLANNING
Prepare your laboratory
- Compatibility
- Confirm beam geometry, cell mounting, window material, sample thickness and instrument clearance.
- Utilities
- Match gas, liquid, electrical and heating / cooling connections to the experiment.
- Installation review
- Confirm sealing, material compatibility and operating limits with the technical team.
Cell requirements depend on the selected materials, interfaces and host instrument.
