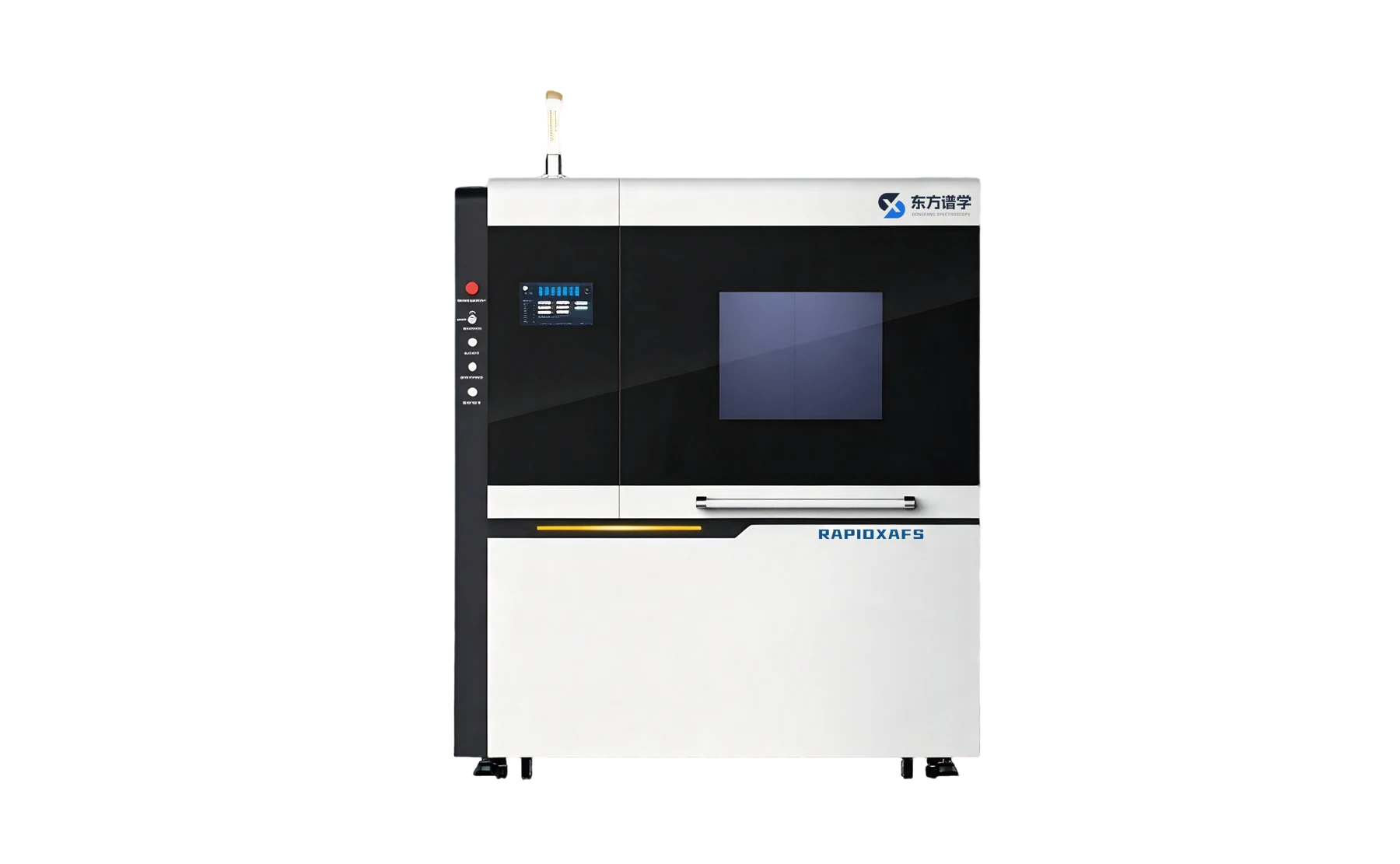

RapidXAFS 1M
Routine XAFS characterization and preliminary experiments for conventional samples.
- Energy range
- 4.5–20 keV
- Energy resolution
- XANES: 0.5–1.5 eV; EXAFS: 1.5–10 eV
TECHNICAL SPECIFICATIONS
Specifications and configuration
- Energy range
- 4.5–20 keV
- Energy resolution
- XANES: 0.5–1.5 eV; EXAFS: 1.5–10 eV
- Maximum flux at sample
- 1 × 10⁶ photons/s at 8 keV
- XAFS modes
- Transmission
- XES module
- Not available
- In situ accessories
- Standard cells supported
Performance depends on energy, sample and configuration.
LABORATORY PLANNING
Prepare your laboratory
- Room and access
- Reference room ≥3 × 4 m; wall clearance ≥70 cm; door ≥120 × 200 cm.
- Floor and delivery
- For upper floors: 660 kg/m²; freight elevator ≥1 tonne, cabin ≥120 W × 200 H × 170 D cm.
- Power
- 180–240 V; instrument 3 kW, chiller 2 kW, computer 1 kW; five 10 A outlets; ground resistance <5 Ω.
- Environment
- 18–25°C, fluctuation ≤1°C; RH 40–60%, fluctuation ≤10%.
- Utilities
- 20 L water and 40 L helium; optional liquid nitrogen ≥20 L.
XAFS-series reference requirements. The final model and configuration must be reviewed by the installation team.
