Hard X-ray emission spectroscopy

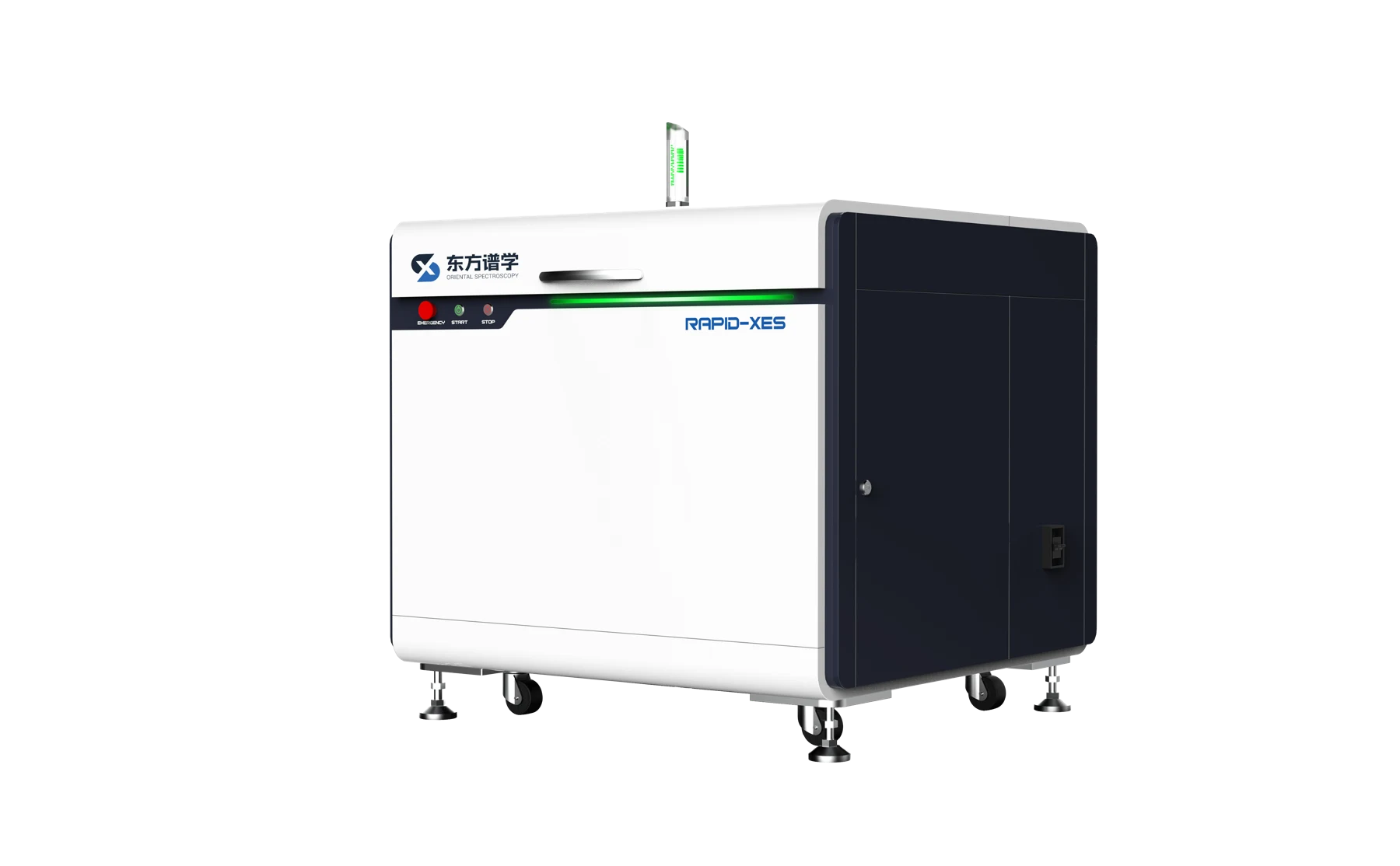

Rapid XES
Probe oxidation states, spin states and ligand environments with laboratory hard XES.
- Energy range
- 4.5–20 keV
- Energy resolution
- ≤1 eV (Cu Kα line)
TECHNICAL SPECIFICATIONS
Specifications and configuration
- Energy range
- 4.5–20 keV
- Energy resolution
- ≤1 eV (Cu Kα line)
- Detection limit
- 50 ppm (brochure reference; sample and conditions dependent)
- Rapid XES pro source
- 4 kW
- Rapid XES pro mode
- XES
The 100 W XES/XAFS configuration in the brochure belongs to RapidXAFS 2M; it is distinct from the 4 kW Rapid XES pro configuration.
LABORATORY PLANNING
Prepare your laboratory

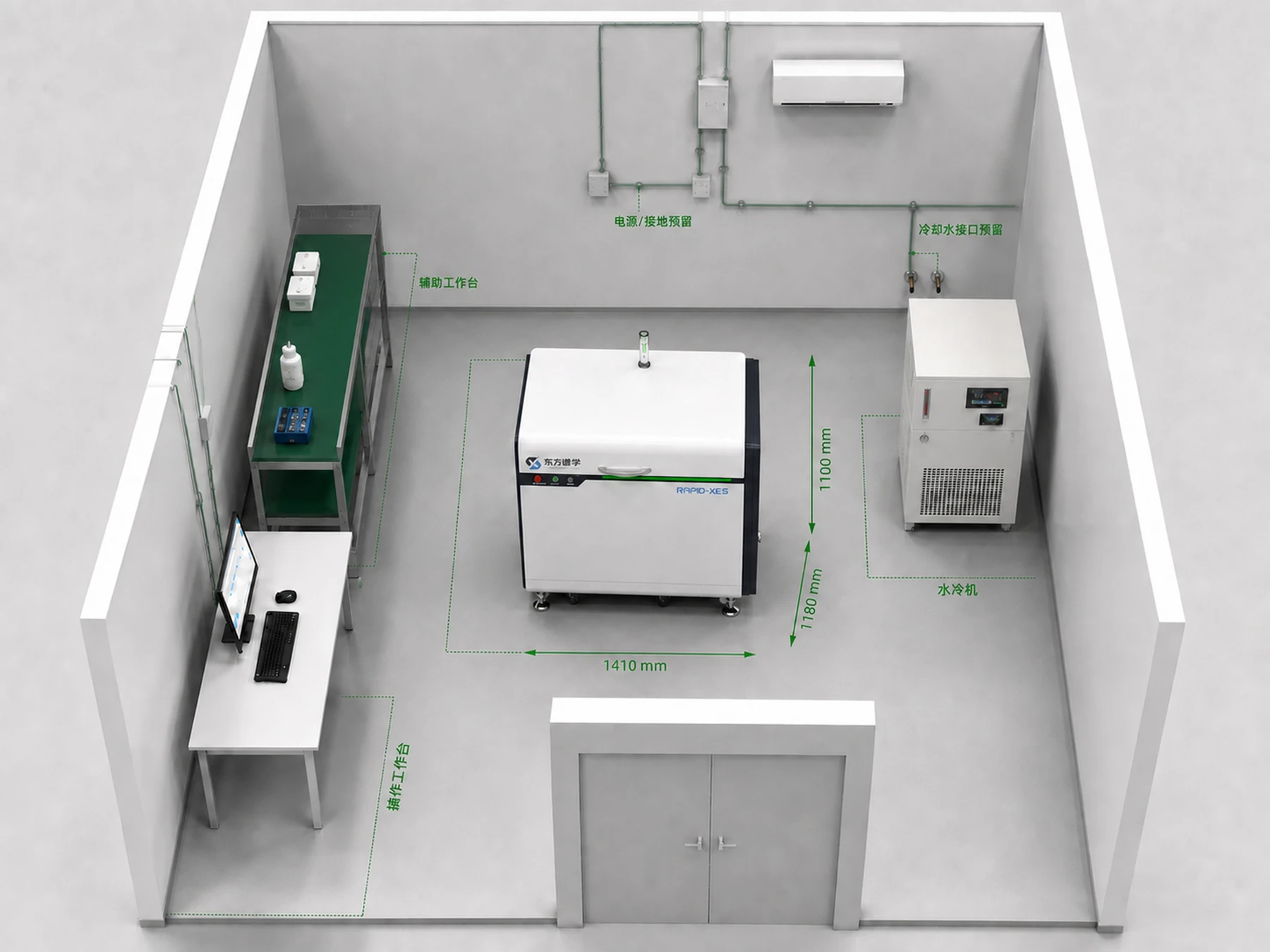

- Layout
- Reserve space for the instrument, chiller, operating desk and auxiliary table.
- Utilities
- Confirm power, grounding and cooling-water positions against the dedicated layout.
- Site review
- Submit room dimensions, access, floor capacity, electrical supply and environmental conditions to the technical team.
The supplied hard-XES layout does not contain a complete numerical installation checklist. Request model-specific requirements.
RESOURCES & SUPPORT
Explore Rapid XES
Match the system to your sample, measurement target and laboratory.
