Mid-energy XES
XEScope
Mid-energy X-ray emission spectroscopy for chemical-state and electronic-structure research.
- Energy range
- 1.1–8 keV
- Energy resolution
- Up to 0.5 eV; confirm measurement conditions
TECHNICAL SPECIFICATIONS
Specifications and configuration
- Energy range
- 1.1–8 keV
- Energy resolution
- Up to 0.5 eV; confirm measurement conditions
- Measurement
- X-ray fluorescence emission spectroscopy
Website energy range updated to 1.1–8 keV. The existing Chinese brochure predates this update.

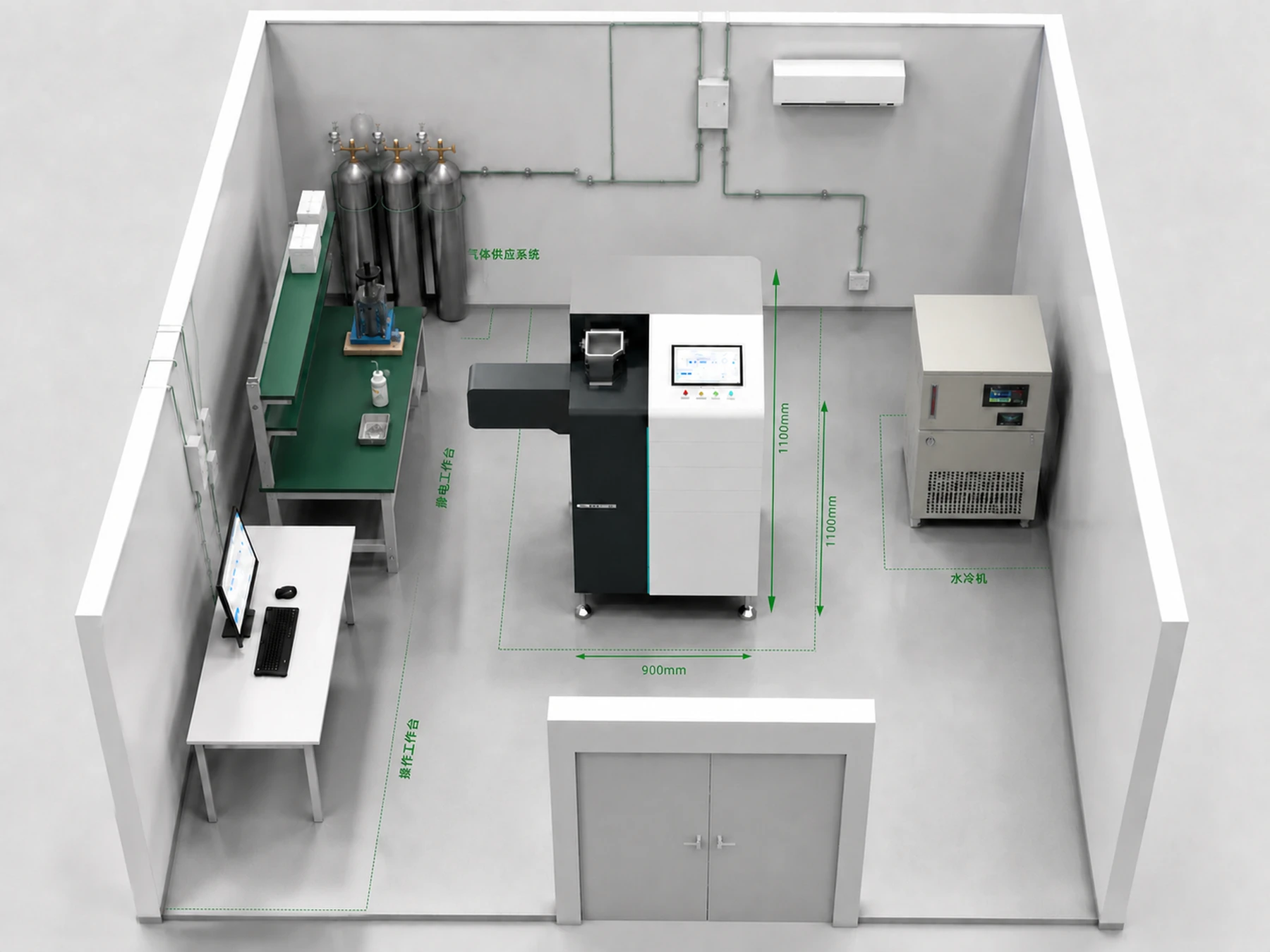

LABORATORY PLANNING
Prepare your laboratory
- Access and load
- Door ≥120 × 150 cm; floor loading 500 kg/m²; freight elevator ≥1 tonne, cabin ≥120 × 150 × 130 cm.
- Power
- Instrument 4 kW, chiller 5 kW, computer 1 kW; three 10 A outlets.
- Utilities
- 50 L water, 40 L helium and an 80 × 40 cm auxiliary table.
Requirements from the XEScope installation document; confirm the electrical connection plan for the selected system.
Installation checklist (Chinese DOCX) ↓RESOURCES & SUPPORT
Explore XEScope
Match the system to your sample, measurement target and laboratory.
