RAMAN in situ cell

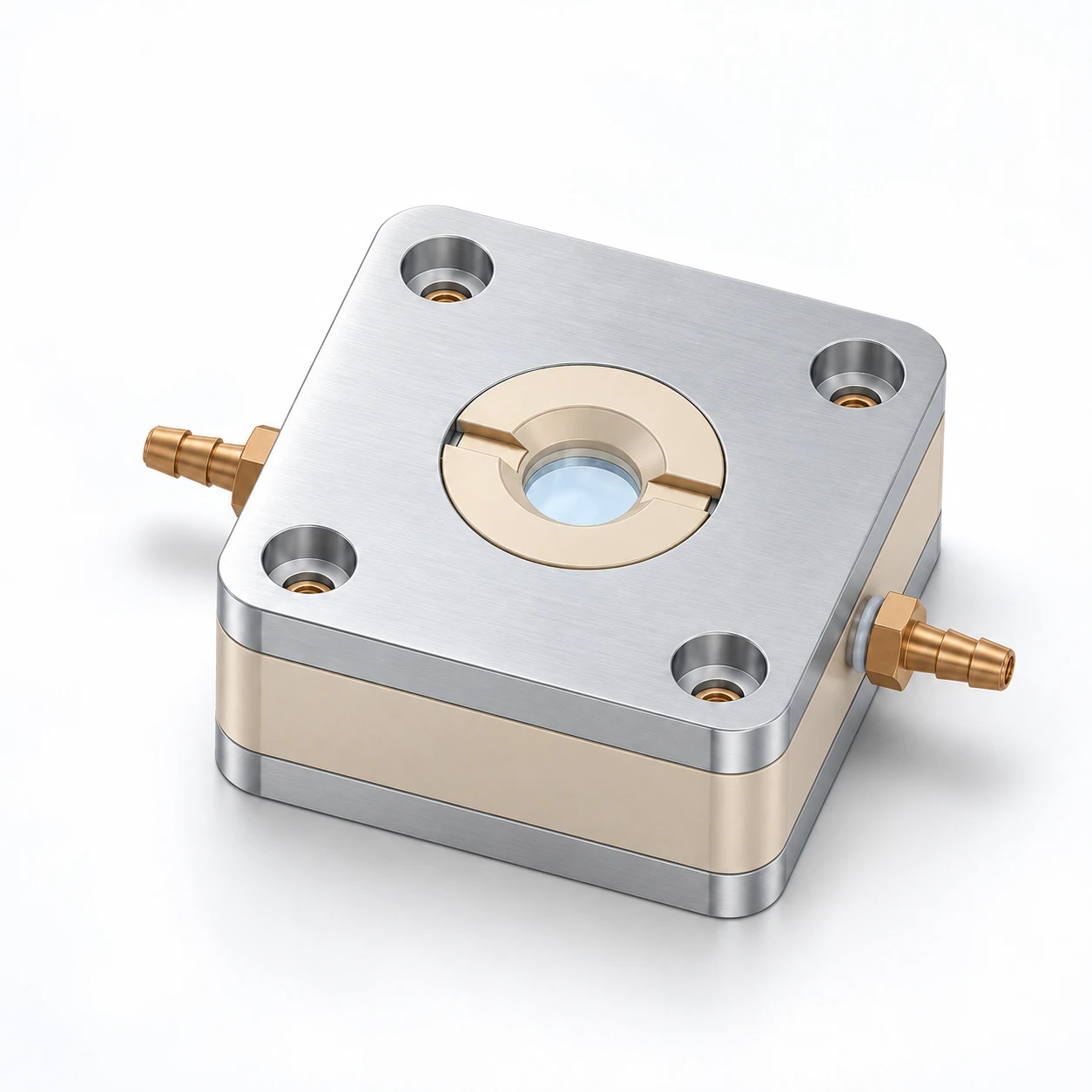

In situ Raman cell
Controlled-atmosphere Raman measurements with upper and lower quartz windows.
- Function
- Controlled-atmosphere Raman measurements of solids, powders or films.
- Beam path / detection
- Transparent upper and lower windows align excitation and scattered light with the sample.
TECHNICAL SPECIFICATIONS
Specifications and configuration
- Function
- Controlled-atmosphere Raman measurements of solids, powders or films.
- Beam path / detection
- Transparent upper and lower windows align excitation and scattered light with the sample.
- Atmosphere
- Side ports supply inert gas (N₂, Ar) or reactive gas.
- Sealing / structure
- Four corner bolts compress the upper / lower flanges and O-ring seal.
- Sample mounting
- Central circular recess supports a window-mounted or spread sample.
- Applications
- Catalysts, phase transitions, gas–solid intermediates and battery / electrolyte systems.
Materials, windows, temperature control and interfaces are selected for the experiment. Confirm instrument compatibility and the final technical agreement.
LABORATORY PLANNING
Prepare your laboratory
- Compatibility
- Confirm beam geometry, cell mounting, window material, sample thickness and instrument clearance.
- Utilities
- Match gas, liquid, electrical and heating / cooling connections to the experiment.
- Installation review
- Confirm sealing, material compatibility and operating limits with the technical team.
Cell requirements depend on the selected materials, interfaces and host instrument.
RESOURCES & SUPPORT
Explore In situ Raman cell
Match the system to your sample, measurement target and laboratory.
