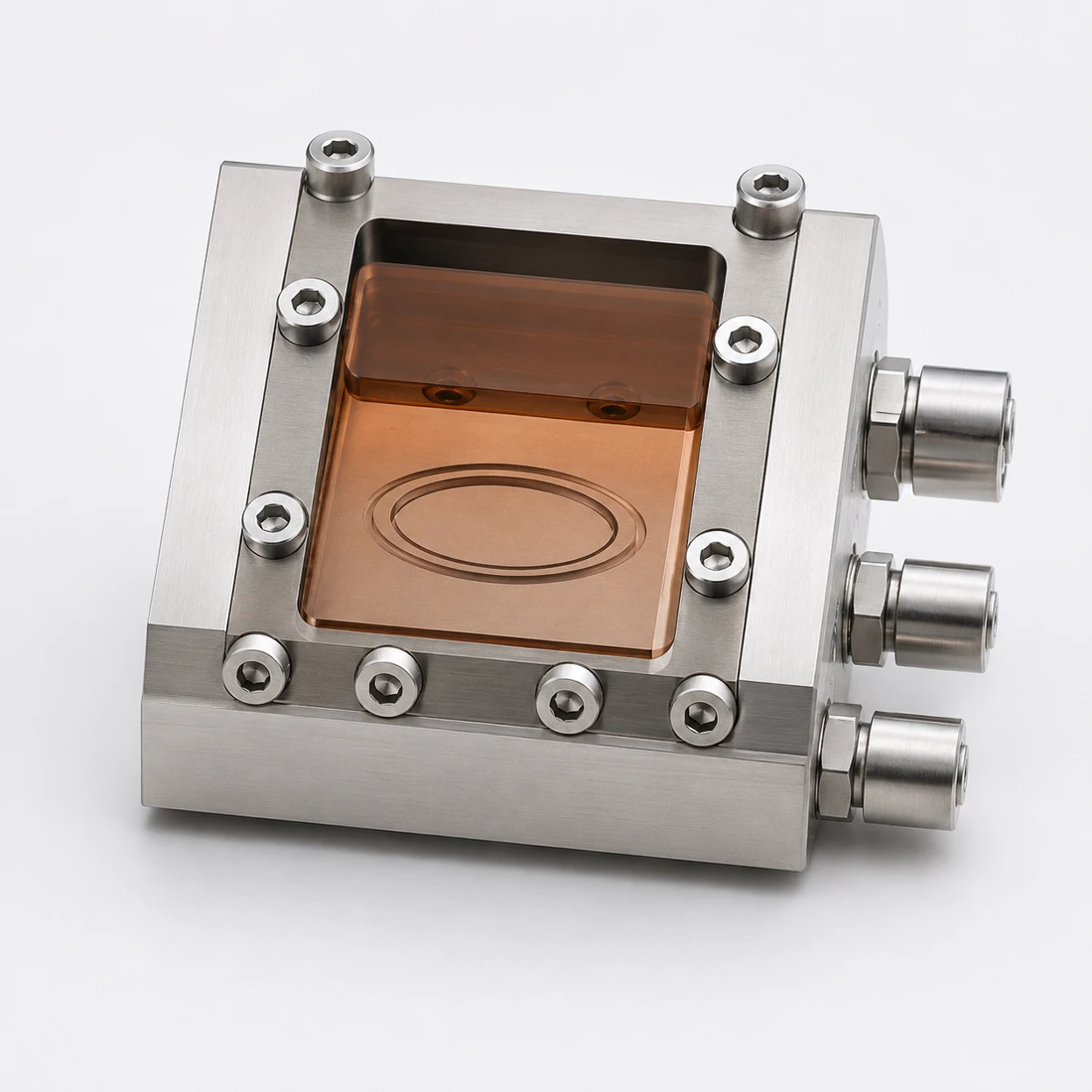

XRD in situ cell
XRD gas cell
Gas–solid reactions under controlled or flowing gas for in situ XRD.
- Function
- Sealed gas–solid reaction chamber for XRD of powder or thin-film catalysts under controlled or flowing gas.
- Beam path / detection
- Diffraction through the sample region; optional heating supports combined TPR/TPO and XRD.
TECHNICAL SPECIFICATIONS
Specifications and configuration
- Function
- Sealed gas–solid reaction chamber for XRD of powder or thin-film catalysts under controlled or flowing gas.
- Beam path / detection
- Diffraction through the sample region; optional heating supports combined TPR/TPO and XRD.
- Gas path
- Side inlet and outlet; gas passes over the sample or through the powder bed.
- Sample mounting
- Powder bed or film secured on a central recessed stage.
- Sealing / structure
- O-ring sealed disc / circular-flange chamber.
- Optional heating
- Optional heating jacket or rod for temperature-programmed experiments.
Materials, windows, temperature control and interfaces are selected for the experiment. Confirm instrument compatibility and the final technical agreement.
LABORATORY PLANNING
Prepare your laboratory
- Compatibility
- Confirm beam geometry, cell mounting, window material, sample thickness and instrument clearance.
- Utilities
- Match gas, liquid, electrical and heating / cooling connections to the experiment.
- Installation review
- Confirm sealing, material compatibility and operating limits with the technical team.
Cell requirements depend on the selected materials, interfaces and host instrument.
RESOURCES & SUPPORT
Explore XRD gas cell
Match the system to your sample, measurement target and laboratory.
